Instrument Structure

Light Source: Provides continuous wavelength light. Common types include:

Tungsten lamp (suitable for the visible light region, 400–760 nm)

Deuterium lamp (suitable for the ultraviolet light region, 190–400 nm)

Monochromator: Decomposes the composite light emitted by the light source into monochromatic light (specific wavelength), with the core component being a prism or grating.

Sample Chamber: A container (cuvette) for holding the sample to be tested, typically equipped with a light-blocking cover to prevent external light interference.

Detector: Converts light signals into electrical signals. Common types include phototubes and photomultiplier tubes.

Display screen and control panel: Displays data such as absorbance (A), transmittance (T), and concentration (C), and allows parameter settings (e.g., wavelength, measurement mode) via buttons.

Product characteristics

1.Benchtop Spectrophotometer provides real inter-instrument agreement, no dummy parameters.Inter-instrument agreement refers to the error between multiple instruments, and the smaller the value, the better the performance of the instrument

2.Equipped with green board, as the instrument for long-term use of accuracy verification.

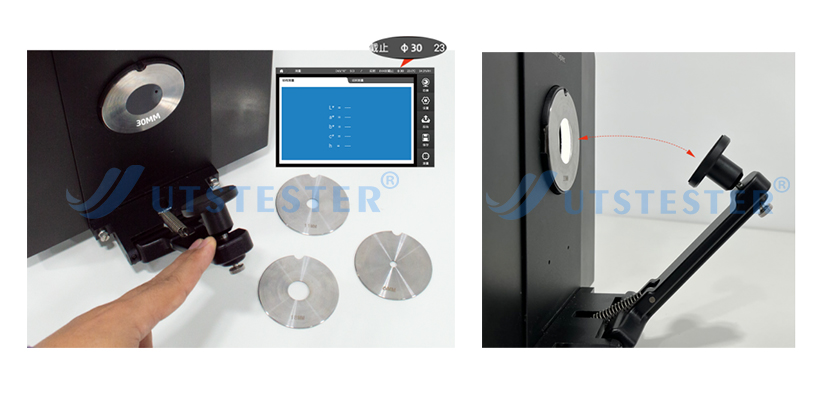

3.When the calibre is switched, the instrument automatically recognizes the calibre size and will not make mistakes

4.HD preview camera for clear positioning of the area under test

5.One key boot, boot wizard guide, help beginners quickly start operation, no training

6.The software interface is simple and clear, the data display is prominent and easy to read

7.Measuring handle damping design, slow and natural rebound, easy to pinch the sample

8.Transmitted D/0 structure and reflected D / 8 structure

9.Dual optical path spectral analysis technique

It can obtain both the measurement sample and the internal environment reference data at the same time to ensure the accuracy and long-term repeatability.

10.Compatible with SCI/SCE measurement, and support SCI + SCE simultaneous fast measurement

Using the D / 8 lighting observation conditions recommended by the International Lighting Commission to meet the measurement needs of various industries;Enables specular reflection (SCI) and non-specular reflection (SCE) measurements for fuller insight into color data changes. And support SCI + SCE simultaneous fast measurement, the test time is less than 4 seconds.

11.Equipped with Android operating system and rotary capacitive touch screen

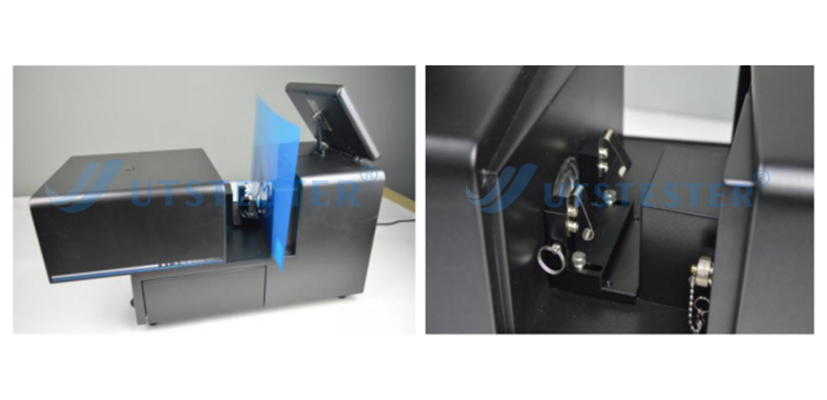

12.Open transmission sample compartment to accommodate large size samples

The open transmission sample compartment is not limited by the sample size, and even large-sized films can be easily handled.

13.Accessories

15 kinds of standard accessories, 12 kinds of optional accessories, to meet the test needs in different scenarios.

14.The instrument comes with accessories drawer, convenient accessories protection and storage

15.Four UV measurement modes make fluorescence invisible

Features

1.Repeatability: ΔE*ab≤0.02

2.Inter-instrument agreement: ΔE*ab 0.25

3.Measuring wavelength range: 360nm-780nm

4.Dual optical path spectral analysis technique

5.Support SCI + SCE simultaneous fast measurement
